Accurate Air Permeability Units , Laboratory Cement Testing Equipment Easy Operation

Ask Lasest Price
Brand Name :	WUWAY
Model Number :	WW-AP1001
Payment Terms :	T/T, L/C
Supply Ability :	20 + pcs + per month
Delivery Time :	15 work days

Add to Cart

Product Details
Company Profile

Accurate Air Permeability Units , Laboratory Cement Testing Equipment Easy Operation

Description

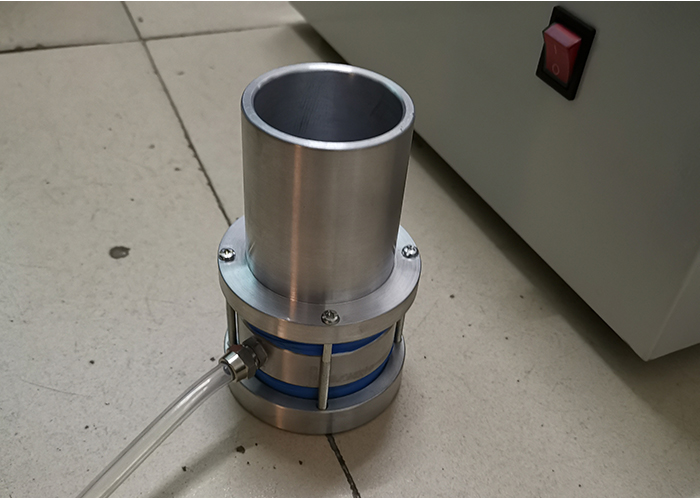

It is used to determine the air permeability of moulding sand and core sand in dry or wet condition. It uses a special electronic frequency modulation motor, digitally controlled by a single chip microcomputer. High precision micro pressure sensor with constant air pressure output. It can automatically and accurately calculate the air permeability, display, data processing, storage and printing.

main specifications

measuring range: -0981 Pa

sample size	ɸ50mm*50mm
air source pressure	981Pa±5Pa(100mmH2O)
air hole size	large hole: 1.5mm, small hole: 0.5mm
air permeability	0-2450, ±1%FS
power source	AC220V/50Hz, 3KW
enviroment condition	greenhouse, relative humidity: ≦90%(no ondensation)

sample size ɸ50mm*50mm
air source pressure 981Pa±5Pa(100mmH2O)
air hole size large hole: 1.5mm, small hole: 0.5mm
air permeability 0-2450, ±1%FS
power source AC220V/50Hz, 3KW
enviroment condition greenhouse, relative humidity: ≦90%(no ondensation)

Instrument features

1. It adopts electronic frequency modulation speed regulation motor.

2. It is controlled by single chip micro computer.

3. It also adopts high precision micro pressure sensor in order to supply constant air pressure output.

4. It can finish testing, data processing, displaying, data saving and printing automaticly

main applications

It is widely used in foundry, machinery, casting, qualitative inspection, scientific research, university lab....
