Description
1. Its main use is to make standard sample for strenght tester and
air permeability tester.
2. The sample is used to determine the compaction of the molding
sand.
3. Samples of various standard geometries can be prepared for
testing of foundry sands and mixtures
4. The sample was prepared by using a sample box (barrel) of
various standard geometries, and placing an appropriate amount of
molding sand
or mixture in a box (barrel) and applying a impact energy impact of
1 kg.
5. The structure is composed of a base, a size cam, a weight, a
punch, a scale and the like.
main specifications
Dimensions: 2052*215*580 mm
weight of tha machine: 25 kg
hammer weight 6670±10g
height of hammer dropping 50±0.5mm
impacting time of the hammer 3 times
impact strengh 1kg.m(6670*0.05*3)
sample spec. compression and shearing: cylindrical, ɸ50±0.5mm

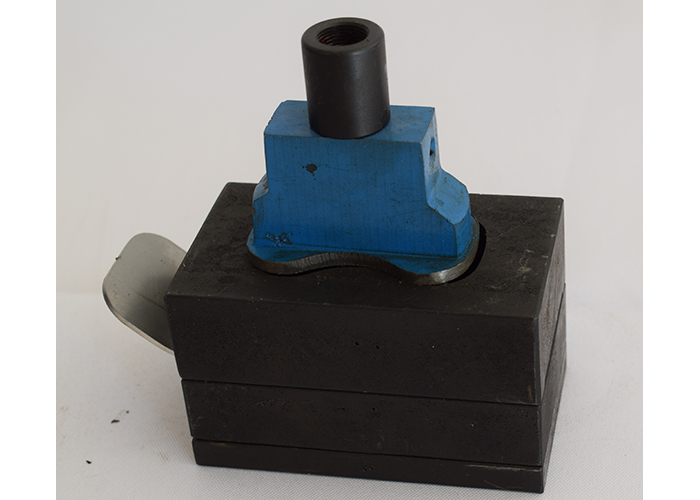

tensile: waist shape, middle cross section:22.3*22.3mm
bending: cuboid, 22.3*22.3*150mm
| hammer weight | 6670±10g |
| height of hammer dropping | 50±0.5mm |
| impacting time of the hammer | 3 times |
| impact strengh | 1kg.m(6670*0.05*3) |
| sample size for compression and shearing: | cylindrical, ɸ50±0.5mm |
| sample size for tensile | waist shape, middle cross section:22.3*22.3mm |
| sample size for bending | cuboid, 22.3*22.3*150mm |
Instrument features
1. It is a matching product of tensile tester and air permeability
tester.
2. It mainly includes rack, cam, heavy hammer, cylindrical impact
head, scale ruler...
main applications
It is widely used in foundry, machinery, auto, casting, qualitative
inspection, scientific research, university lab..
