Description:
It is used to determine the gas performance of casting molding
sand, clay sand, resin sand, coated sand
and coating material in high temperature.

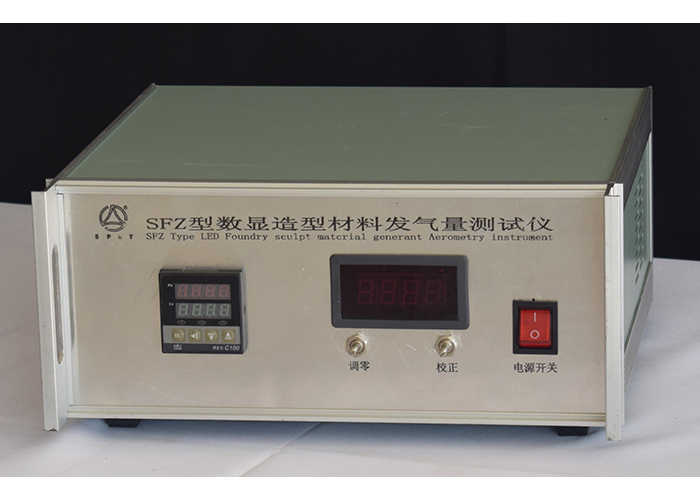

It is mainly composed of temperature control record box and heating
furnace. The temperature control record box adopts advanced
pressure transmitter and microprocessorized digital control
regulator and other advanced components at home and abroad. The
data acquisition rate is more than 100 times/second, which
effectively avoids Loss of data peaks, using advanced embedded
system, LCD display real-time curve and maximum value, easy to
operate, large-capacity storage space can save data for several
years and save data copy, can query and print real-time data or
historical data
main specifications
| Measuring range | 0-100ml |
| Measurement accuracy | ±3% |
| Temperature control range | 600-1200 °C |
| Temperature accuracy | ±1°C |
| Maximum working current | 15A |
| Maximum power | 4KW |
| Working conditions | ambient temperature 0-50 ° C relative humidity 85% |
(1). Measuring range: 0-100ml (if the test conditions are changed,
the measuring range can be expanded accordingly)
(2). Measurement accuracy: less than ±3% of full scale
(3). Temperature control range: 600-1200 °C, less than ±1°C of full
scale
(4). Maximum working current: 15A
(5). Maximum power: 4KW
(6). Power supply: AC220v±10%/50H
(7). Working conditions: ambient temperature 0-50 ° C relative
humidity 85%
Instrument features
1. It adopts advanced electronic technology and sensor technology.
2. It displays by digital readout box.
3. LCD screen displays real-time curves and maximum values
8. It can store historical data 1000 times, can be queried by time,
batch and print
main applications
It is widely used in foundry, machinery, casting, qualitative
inspection, scientific research, university lab....
