Laptop Controlled Gas Evolution Tester 0-200 Ml Measuring Range

Ask Lasest Price
Brand Name :	WUWAY
Model Number :	WW-GE4002
Payment Terms :	T/T
Supply Ability :	20 + pcs + per month
Delivery Time :	15 work days

Add to Cart

Product Details
Company Profile

Laptop Controlled Gas Evolution Tester 0-200 Ml Measuring Range

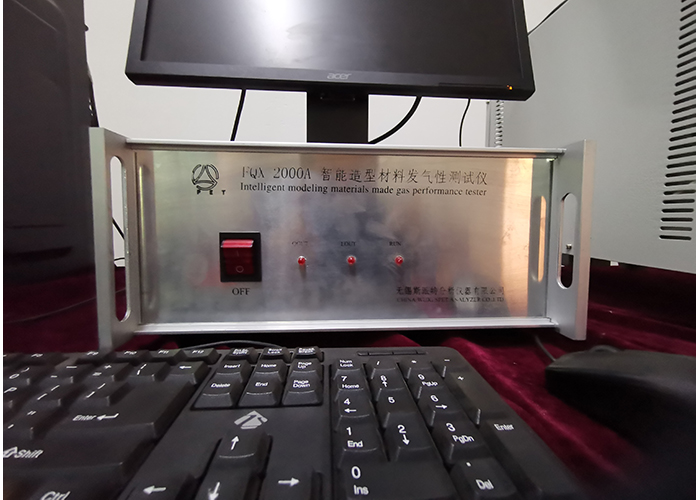

Description:

Its main use is to measure the gas performance of casting molding sand, clay sand, resin sand, coated sand

and coating material in high temperature.

It is controlled by a desktop or laptop.
It uses the Windows 7 system.
It automatically controls and automatically measures throughout.

main specifications

measuring range 0-200ml, accuracy: ±1.5%
temperature of pyrolysis furnace 600-1200℃, accuracy:±1℃
temperature of measurement system 0-120℃, accuracy:±1℃
temperature of working condition -5-45℃
humidity of working condition ≦85%
timing range 120min, can be set up arbitrarily
rated power 4KW
power source AC220V/50HZ

measuring range	0-200ml, accuracy: ±1.5%
temperature of pyrolysis furnace	600-1200℃, accuracy:±1℃
temperature of measurement system	0-120℃, accuracy:±1℃
temperature of working condition	-5-45℃
humidity of working condition	≦85%
timing range	120min, can be set up arbitrarily
rated power	4KW
power source	AC220V/50HZ

Instrument features

1. It uses advanced electronic technology computer technology and sensor technology.

2. It is controlled by computer with Windows OS.

3. It adopts gas pressure sensor from USA, JAPAN, GERMANY.

4. It uses LCD screen.

5. It can display all the functions through splitting screen.

6. It can disply the gas evolution curve and release curve dynamicly,saving curves,

inquiring data,analysing and printing the result.

7. Equiped with electronic balance.

main applications

It is widely used in foundry, machinery, casting, qualitative inspection, scientific research, university lab....
