Description:
1. Analytical method: photoelectric colorimetric analysis
2. Measuring range Absorbance 0～1.999A Mass fraction: 0～99.99%
3. Measurable element: (Mn, P, Si, Cr, Ni,Mo, etc. in steel as an
example)
Mn: 0.010~20.500% P: 0.0005~1.0000%
Si: 0.010~18.000% Cr: 0.010%~38.000%
Ni: 0.010~48.000% Mo: 0.010%~7.00%
ΣRE: 0.0100%~0.500% Mg: 0.0100%~0.800%
Cu: 0.010%~8.000% Ti: 0.010%~5.000%
If the test conditions are changed, the range can be expanded
accordingly.
4. Detectable elements such as Mn, P, Si, Cr, Ni, ΣRE, Mg, Mo, Cu,
Ti, V, etc.
5. measurement accuracy: GB223.68-1997, GB223.69-1997,
GB223.3~5-1988, etc.

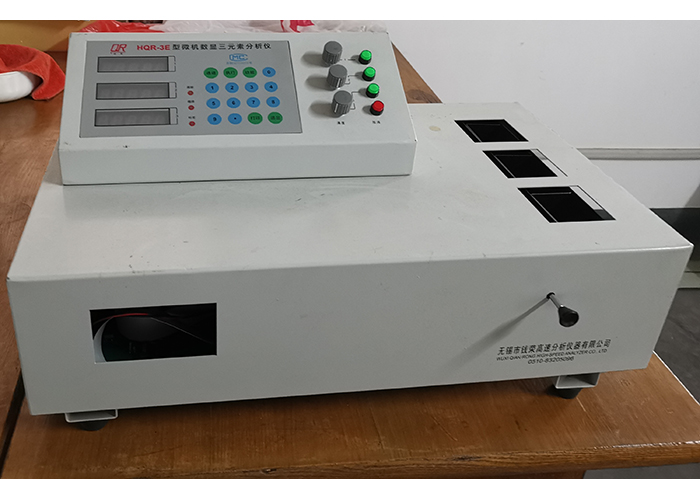

The three-element microcomputer analyzer uses advanced "smart
dynamic follow-up" and "standard curve nonlinear regression"
techniques.
Microcomputer control and data processing, curve correction,
automatic display and printing of test results, a total of 12
working curves can be stored, theoretically can detect 12 elements.
It can fully meet the analysis of multi-element in carbon steel,
high-medium-low alloy steel, stainless steel, cast iron, ductile
iron, alloy cast iron, ferromanganese and other materials.
Technical Parameters
| Analytical method | photoelectric colorimetric analysis |
| Measuring range | Absorbance 0～1.999A Mass fraction: 0～99.99% |
| Detectable elements | Mn, P, Si, Cr, Ni, ΣRE, Mg, Mo, Cu, Ti, V |
| measurement accuracy | GB223.68-1997, GB223.69-1997, GB223.3~5-1988 |
main feature:
1. Using the "intelligent dynamic following" and "non-linear
regression of the standard curve" technology, the results are
directly read. Print automatically.
2, using microcomputer control and data processing, can store 12
curves, and can be modified by curve, with power-off data
protection and other functions.
3, the instrument design is reasonable, change the color filter,
cuvette, sample volume, and the rational use of the curve, you can
expand the variety and content range of the measured
elements.Range:
4. The instrument is simple and practical, and the operation is
flexible and convenient.
