Maul Operation Foundry Sand Testing Equipment Automatic Loading Adopts Special Stepping Motor

Ask Lasest Price
Brand Name :	WUWAY
Model Number :	WW-ST3003
Payment Terms :	T/T, L/C
Supply Ability :	20 + pcs + per month
Delivery Time :	15 work days

Add to Cart

Product Details
Company Profile

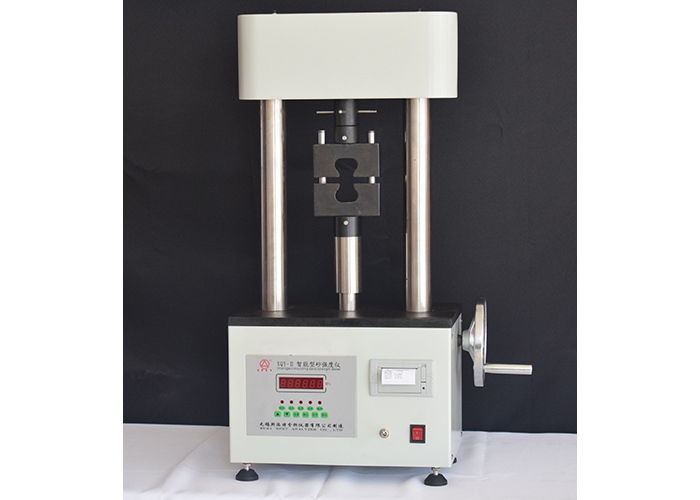

Maul Operation Foundry Sand Testing Equipment Automatic Loading Adopts Special Stepping Motor

Description:

It is used to determine the compression strengh, shearing strengh, bending strengh and tensile strengh of the moulding sand. It is also used to determine the strengh of ceramics, cement and so on.

It adopts special stepping motor and worm gear reduction mechanism. It adopts single-chip microcomputer digital control, adopts crosshead displacement trimmer and vertical structure of the whole machine to realize fully automatic uniform loading and unloading. Data storage, power-down protection and printing

Max testing force	5000N
compression strengh	0-1.5MPa
tensile strengh	0-6MPa
shearing strengh	0-1.2MPa
bending strengh	0-60MPa
display accuracy	±1.5%FS
rated power	100W
power source	AC220V/50Hz

main specifications

Max testing force 5000N
compression strengh 0-1.5MPa
tensile strengh 0-6MPa
shearing strengh 0-1.2MPa
bending strengh 0-60MPa
display accuracy ±1.5%FS
rated power 100W
power source AC220V/50Hz

Instrument features

1. It adopts special stepping motor, turbineworm reducer, linear sliding shaft balance system

2. It is controlled by micro computer.

3. It can load and unload automatically and uniformly.

4. It has these functions, such as saving data, power failure protection, printing...

main applications

It is widely used in foundry, machinery, casting, qualitative inspection, scientific research, university lab....
