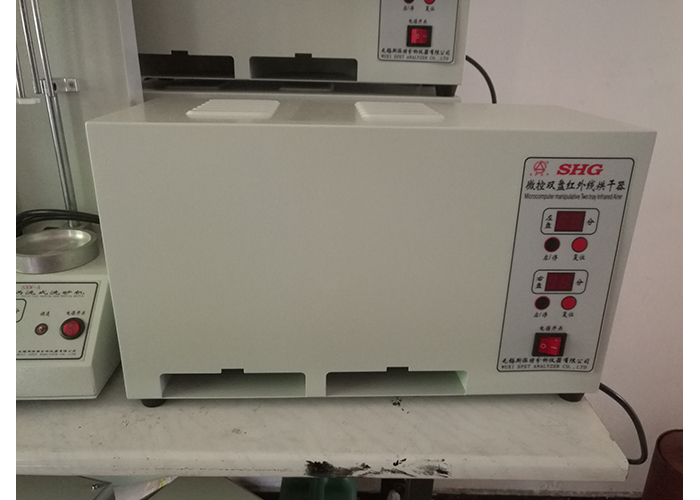

By micro computer control display infrared irradiation time, Using
infrared lamp radiation heat energy, Make sample moisture in
volatilizes quickly, Then weighing scales ,calculate sand sample of
the moisture content. Its structure is mainly composed of shell,
Infrared bulb, micro computer timing system, switch,and other
components.
Technical parameters
1. Infrared bulb: AC220V / 250W
2. sand tray surface temperature:110℃～170℃
3. sand tray size (bottom diameter × depth):110×27mm
4. Drying time:6～15Minute
5. Timer range:0～99Minute
6. Supply voltage: AC220V±10%,50HZ
7. Rated Power: 0.8KW
| Infrared bulb | AC220V / 250W |
| sand tray surface temperature | 110℃～170℃ |
| sand tray size (bottom diameter × depth) | 110×27mm |
| Drying time | 6～15Minutes |
| Timer range | 0～99Minute |
| Supply voltage | AC220V±10%,50HZ |
| Rated Power | 800W |
Instrument features
1. Adopt advanced computer software and hardware technology at home
and abroad and new research results such as electronics, optics and
sensing strain
2. Widely used equipment, mature technology, and its own patented
technology;
3. The software and hardware are not updated regularly, and the
most advanced technology is adapted to the needs of customers;
4. The device is reserved with an online detection function, which
can add more functions at any time according to the needs of the
guests;
5. The products have been recognized by relevant domestic and
foreign enterprises, universities and research departments.
Casting quality testing equipment mainly includes casting quality
inspection and sand testing equipment.
Casting inspection equipment mainly includes vacuum direct reading
spectrometer, carbon sulfur analyzer, thermal analyzer, ultrasonic
detector, magnetic particle flaw detector, eddy current detector
and so on.
The main instruments for the detection of sand are: sand gas
evolution tester, sand strength tester, sand high temperature
performance tester, sand air permeability tester, sand surface
hardness tester, sand moisture tester, sand compaction tester, Sand
crushing index tester, clay blue measuring instrument, sand melting
point tester, paint surface abrasion resistance tester, and sample
preparation machine, sand mixer, sand washing machine, sand sieve
shaker, sand dryer, etc.
main applications
Products applied mechanical engineering, steel industry, commodity
inspection department, automobile industry, shipbuilding industry,
foundry industry, scientific research field, college and university
laboratory.
Sand testing equipment has been successfully applied in leading
companies such as aircraft manufacturing and vehicle manufacturing.
