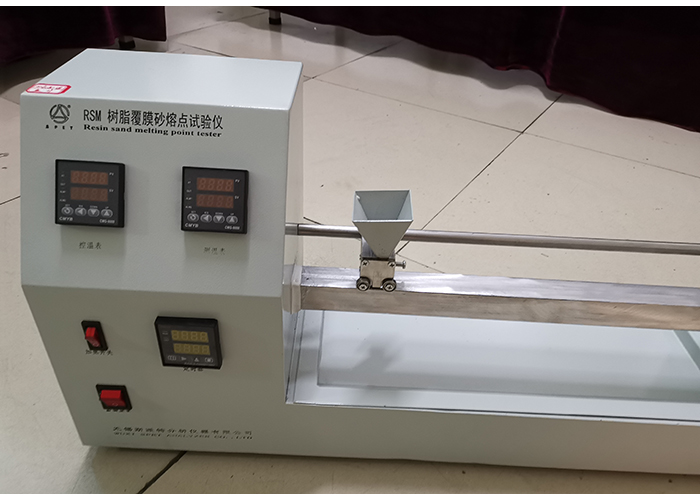

Description:
1. Its main use is to determine the melting point of various types
of resin coated sand.
Melting point is a very important indicator of coated sand and has
a significant impact on core quality.
2. It uses an intelligent digital display temperature controller to
control the temperature to ensure a constant temperature gradient
of the square beam.
3. A portable surface temperature sensor that directly measures the
temperature at any intercept point.
4. The aluminum alloy heat conducting beam is used, and the uniform
measuring hole is made thereon, so that the temperature gradient of
the heat conducting beam is
more obviously constant, and the melting point temperature is more
convenient and accurate.
5. It has the advantages of convenient operation and reliable
measurement data.
main specifications
- highest measuring temperature: 320±0.1℃
- measuring precision: ±1%
- heat conduction beam size: 30*30*430 mm
- setup of the timer: discretionary
- rated power: ≦300 W
- power source: AC220V/50Hz (Customized)
- digital timeing alarm: any setting
| highest measuring temperature | 320±0.1℃ |
| measuring precision | ±1% |
| heat conduction beam size | 30*30*430 mm |
| setup of the timer | discretionary |
| rated power | ≦300 W |
| power source | AC220V/50Hz (Customized) |
| digital timeing alarm | any setting |
Instrument features
1. Intelligent digital display temperature controlling instrument
makes the temperature stable.
2. The thermal conductive beam has measuring holes and it makes
measuring temperature is more accurate.
3. More simple operation,
4. more reliable measured data.
main applications
It is widely used in scientific research, university and labs....
It is an indispensable instrument for determining the melting point
of resin and peritoneal sand in universities, research institutes
and factory laboratories.
